(ABM-8165A)2PT 3PT 4PT 5PT Steel Rule Auto Bender

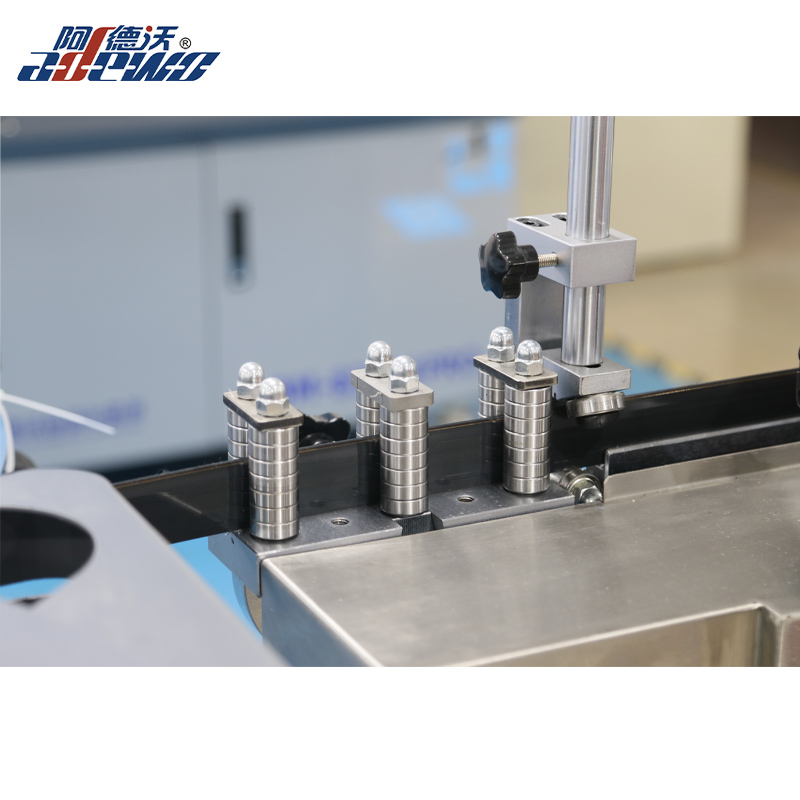

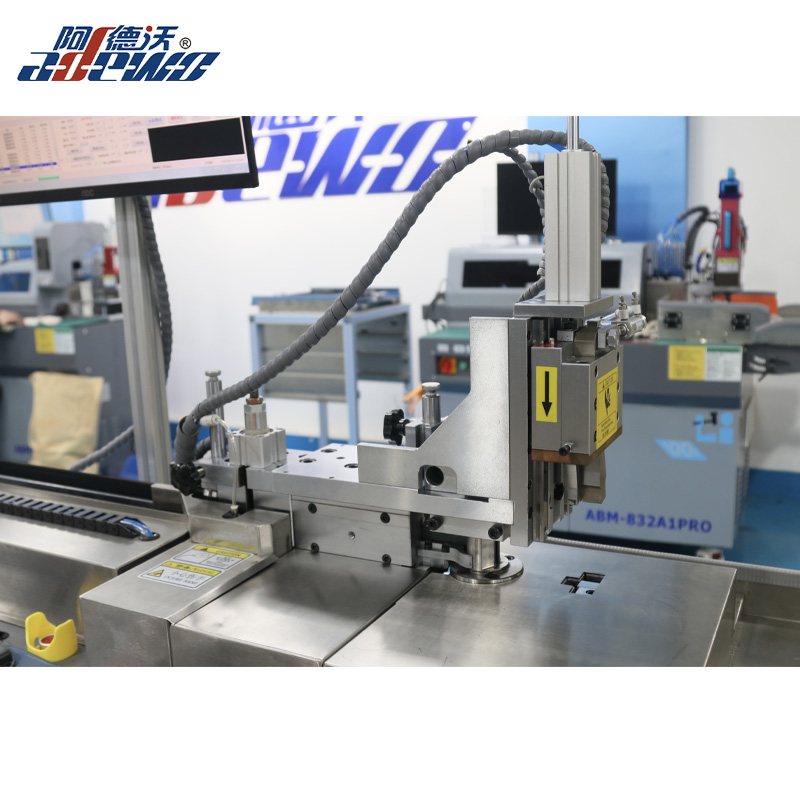

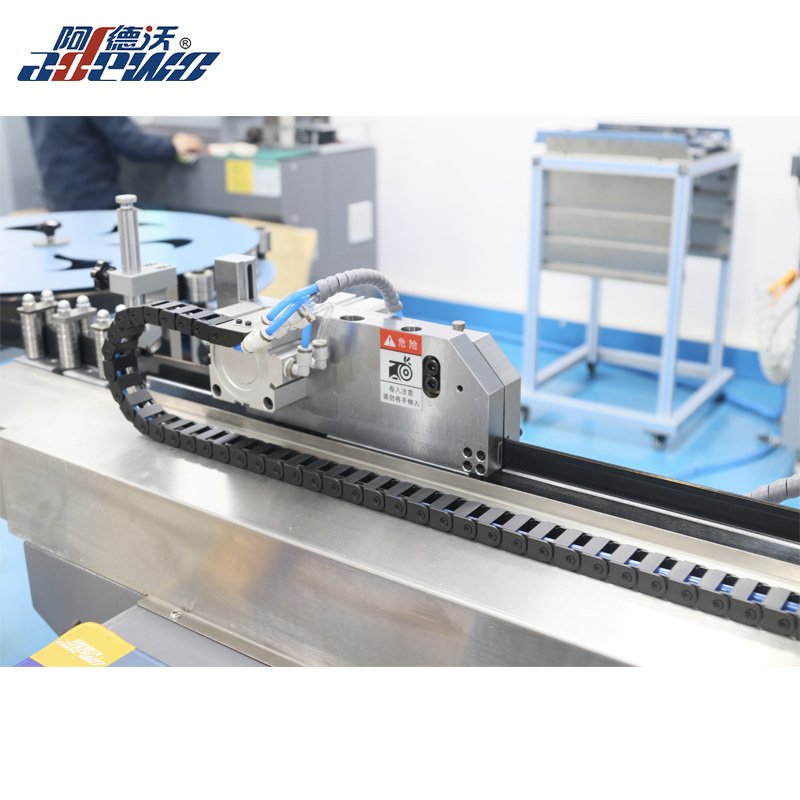

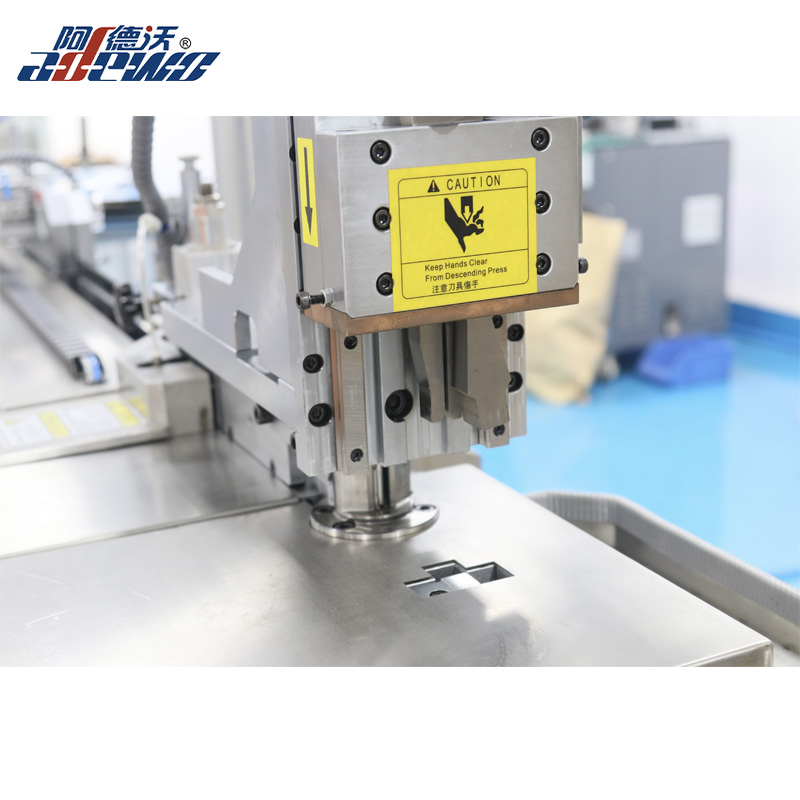

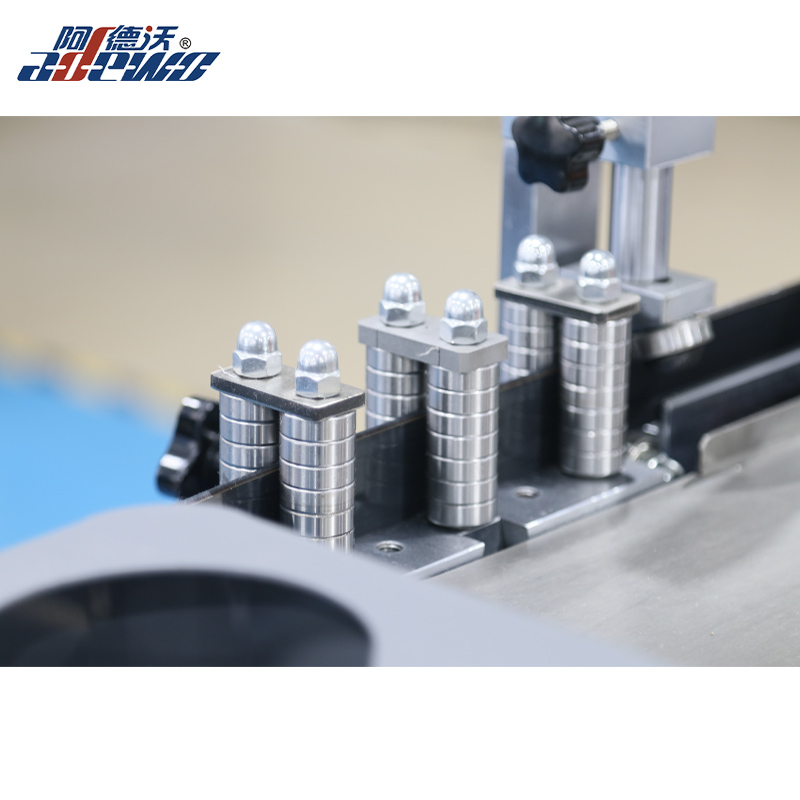

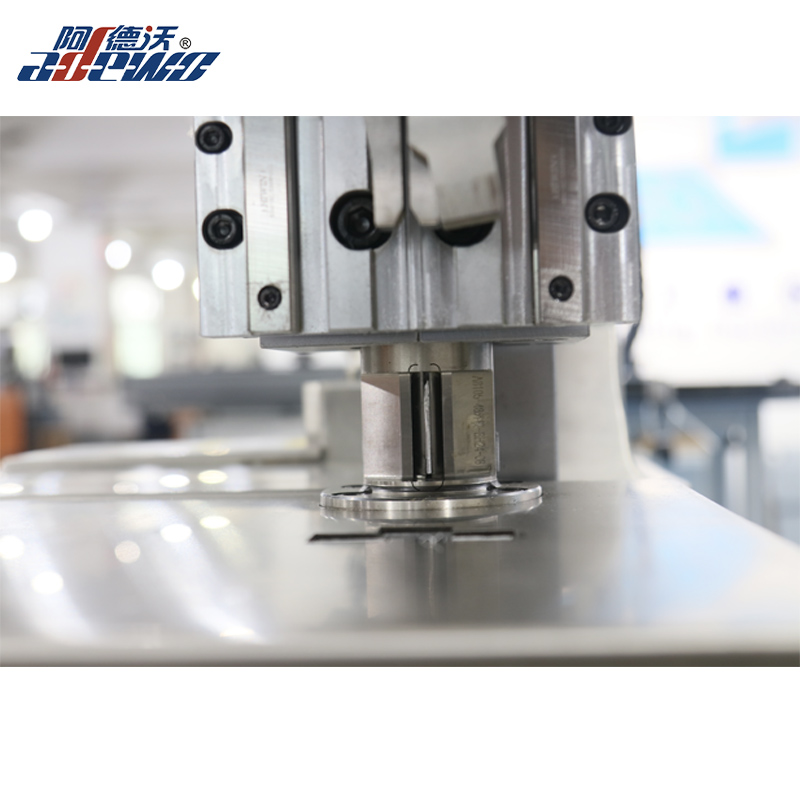

Picture of (ABM-8165A) 2PT 3PT 4PT 5PT Steel Rule Auto Bender for reference:

Product Features:

1.Multi-Functions：(ABM-8165A) 2PT 3PT 4PT 5PT Steel Rule Auto Bender with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.

2.This (ABM-8165A) 2PT 3PT 4PT Steel Rule Auto Bender uses Panasonic Servo motor system, high precise ball-screw guide feeding system.

3.Smart software and easy to operate, multi language operations;

4. Save production time and easy for die making by (ABM-8165A) 2PT 3PT 4PT 5PTSteel Rule Auto Bender.

5.This (ABM-8165A) 2PT 3PT 4PT 5PT Steel Rule Auto Bender apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.

Technical Parameters of (ABM-8165A) 2PT 3PT 4PT 5PT Steel Rule Auto Bender：

Supported rule thickness(mm)	0.71,1.05,1.42,1.65mm(2pt,3pt,4pt,5pt)
Supported rule height(mm)	23.80-32mm
Max Bending Angle	95°
Min. ARC radius of 90 degree	±0.3MM
Front Min. cutting size	2.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	Bending,Bridging,Cutting,Pneumatic Lipping
Cutting methods	Break off and Auto flat cutting
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8mpa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	450KGS
Overall dimension	2800x1050x1600(L×W×H)
H.S. Code	8462230000

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of (ABM-8165A)2PT 3PT 4PT 5PT Steel Rule Auto Bender ?
7-10 working days.

4.How about installation and training of (ABM-8165A) 2PT 3PT 4PT 5PT Steel Rule Auto Bender?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of (ABM-8165A) 2PT 3PT 4PT 5PT Steel Rule Auto Bender?
Yes,the new order machine with free spare tools.

6.Application
•Stripping Dies
•Rotary Dies
•Puzzles
•Gaskets
•Folding Cartons
•Corrugated Boxes
•Cardboard
•Etc…
